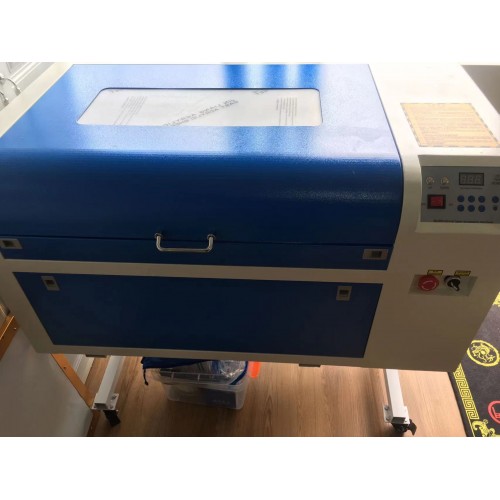

Co2 Laser Engraver 60 Watt 400 x 600 mm Working Area Brand New

Description

This laser engraver is ideal for engraving and cutting non-metallic materials for signage, such as rubber, acrylic, glass, cork, cardboard, leather, plastics, wood, marble, bamboo etc.

Specifications

Model: SDLE-640W60

Laser Power: 60W

Laser Type: CO2 gas

Laser Classification: Class 4 (H)

Motor Type: Stepper motor

Cutting Depth: 0 ? 8mm (depends on materials)

Engraving Speed: 0 ? 450 (mm/s)

Cutting Speed: 0 ? 60 (mm/s)

Minimum Shaping Character: Chinese character: 1.8×1.8mm, Alphabet 0.8×0.8mm

Resolution: 1000dpi

Power Supply: 240V~ 50Hz

Laser Locating Mechanism: Red-dot assistive positioning system

Laser Locating Precision: < 0.05mm

Operating Temperature :0 ? 45C

Operating Humidity: 40 ? 70% (non-condensing water)

Cooling System: Water cooled

Dimension: 1385 x 740 x 565mm

Engraving Area: 600 x 400mm

Z Axis Height: 300mm

Weight: 75kg

Features

? Assistive Positioning: Visible red-dot assistive positioning system to help identify starting point

? Fire Prevention System: Air blaster at the engraving head to stop materials catching fire

? Water Circulation Assurance: Water circulation sensing mechanism is equipped to prevent laser tube from over-heating; it automatically cuts off the power to laser tube once the water circulation stops.

? Adjustable Working Bench: The working bench can be manually adjusted to fit in materials with variety of height

? Extra Working Table: An extra honey-comb working table is provided for engraving purpose

? Emergency Stop: Emergency stop button for safety purpose

Full setup Manual and training video provided.
