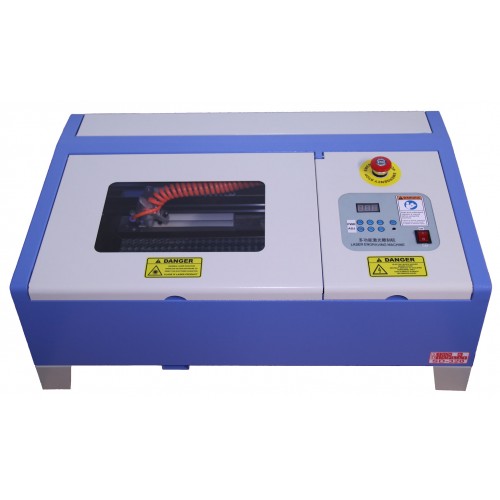

Description
This laser engraver is ideal for engraving and cutting non-metallic materials for signage, such as rubber, acrylic, glass, cork, cardboard, leather, plastics, wood, marble, bamboo etc.
Specifications
• Model: SDLE-320W50
• Laser Power: 50W
• Laser Type: CO2 gas
• Laser Classification: Class 4 (H)
• Motor Type: Stepper motor
• Cutting Depth: 0 – 5mm (depends on materials)
• Engraving Speed: 0 – 450 (mm/s)
• Cutting Speed: 0 – 60 (mm/s)
• Minimum Shaping Character: Chinese character: 1.8×1.8mm, Alphabet 0.8×0.8mm
• Resolution: 1000dpi
• Power Supply :240V~ 50Hz
• Laser Locating Mechanism: Red-dot assistive positioning system
• Laser Locating Precision: < 0.05mm
• Operating Temperature :0 – 45°C
• Operating Humidity: 40 – 70% (non-condensing water)
• Cooling System: Water cooled
• Dimension: 915 x 500 x 250mm
• Engraving Area: 300 x 200mm
• Z Axis Height: 50mm
• Weight: 30kg
Features
• Assistive Positioning: Visible red-dot assistive positioning system to help identify starting point
• Fire Prevention System: Air blaster at the engraving head to stop materials catching fire
• Water Circulation Assurance: Water circulation sensing mechanism is equipped to prevent laser tube from over-heating; it automatically cuts off the power to laser tube once the water circulation stops.
• Adjustable Working Bench: The working bench can be manually adjusted to fit in materials with variety of height
• Extra Working Table: An extra honey-comb working table is provided for engraving purpose
• Emergency Stop: Emergency stop button for safety purpose
FREE Delivery, On Site Installation (Auckland Only), Training provided.
